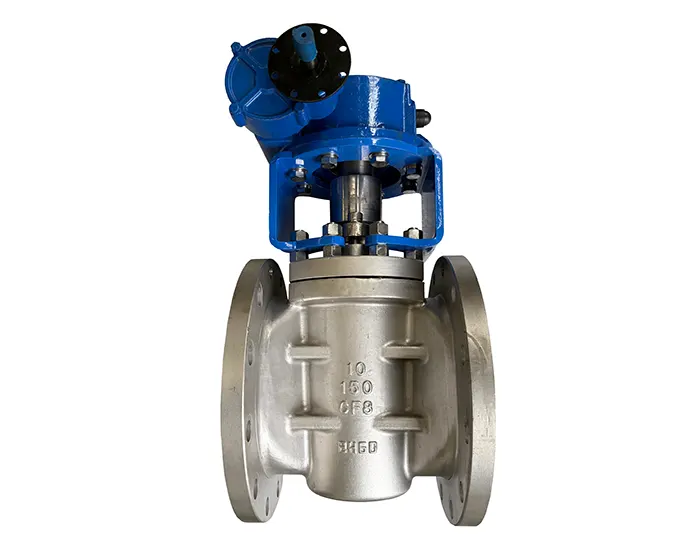

Sleeve Plug Valve

  • Size rangeDN15~1000mm
    NPS1/2"~40"
  • PressurePN0.6~25MPa Class150~1500
  • Body materialductile cast iron, carbon steel, stainless steel, alloy steel, etc.
  • Operationmanual, worm gear, hydraulic, electric, pneumatic
  • Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB
  • More than 40 years professional valve manufacturer.
  • Products are exported to more than 72 countries.
  • Products are widely used in petroleum, chemical industry, metallurgy, electric power, water supply, coal gas, natural gas and other industries.
  • High reliability, excellent quality, fast service, online support

Features:

1. Fixed sleeve no displacement with plug valve body.

2. Top entry design, easy for online installation & maintenance.

3. PTFE sleeve material, self-lubricated, small operating torque.

4. No body cavities, self-cleaning design on sealing surfaces.

5. Compensable sealing pressure for high quality sealing without leakage.

6. Bidirectional seals, no limitation on the flow direction.

7. Antistatic & fireproof design for safety.

8. Full-bore or necked-type plug valve can be chosen, Jacketed design can be chosen.

9. Application: gas-solid & liquid-solid with high washing ability; acid production, alkali production, petroleum, and chemical industries.

Technical Parameters:

Sleeve Plug Valve structure

X343F/X43F-150LB

Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381
H 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 450

X343F/X43F-300LB

Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 140 152 165 178 190 216 241 283 305 381 403 419 457 502 762
H 110 115 115 135 140 150 165 180 380 460 502 580 620 680 760
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 450

X343F/X43F-600LB

Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 165 190 216 229 241 292 330 356 432 508 559 660 787 838 889
H 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 450

X343F/X43F-900LB

Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 216 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 450
