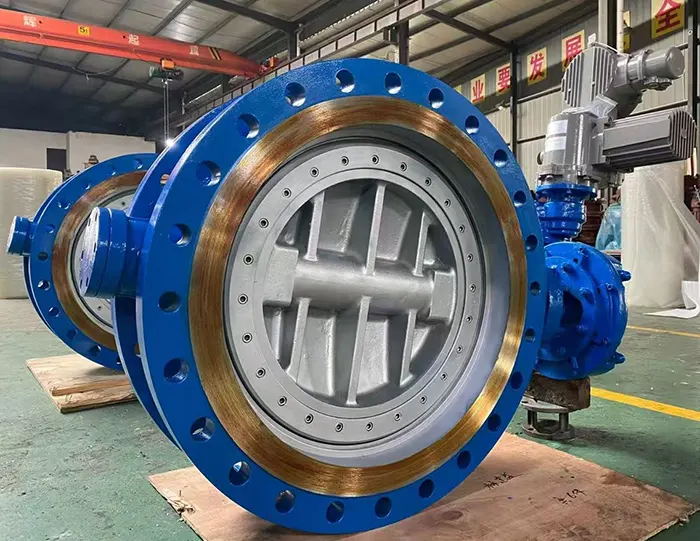

Triple Offset Design:
Offset 1: The valve spindle is positioned behind the seat spindle.
Offset 2: The center of the spindle is offset from the centerline of the pipeline and the valve.
Offset 3: The seat cone shaft is offset from the centerline of the valve shaft.
Main Features:
1.Triple eccentric design for sealing zero leakage.
2.Bi-directional flowing medium & metal-to-metal sealing.
3.Laminated disc seal: The elastic seal is curved and energetic, achieve tight closing in both directions. Self-aligning: expansion due to temperature fluctuations.
4.High quality sealing effect & longer service life.
5.Small installation dimension, small opening/closing torque, small fluid resistance.
6.Range of working temperature: -45℃~538℃, valve body/disc material such as CS/SS304/SS316/AS can be chosen according to working conditions.
7.Connecting type: Flange, BW, Threaded connection.
8.Application: Petroleum and petrochemical, metallurgy, chemical industry, electric power, gas, water conservancy, municipal administration, and construction industries, etc.
Technical Parameters:
D343H-25/40C DN50~DN1600 Dimensions | |||||||||||||
DN | L | 2.5MPa | |||||||||||
Flange Size | Dimension | ||||||||||||
D | D1 | D2 | b | z-Φd | Z-W | H0 | H | A | B | G | |||
50 | 108 | 165 | 125 | 102 | 3 | 20 | 4-Φ18 | 82.5 | 195 | 50 | 144 | 180 | |
65 | 112 | 185 | 145 | 122 | 3 | 22 | 8-Φ18 | 92.5 | 215 | 50 | 144 | 180 | |
80 | 114 | 200 | 160 | 138 | 3 | 24 | 8-Φ18 | 100 | 215 | 50 | 144 | 180 | |
100 | 127 | 235 | 190 | 162 | 3 | 24 | 8-Φ22 | 117.5 | 235 | 50 | 144 | 180 | |
125 | 140 | 270 | 220 | 188 | 3 | 26 | 8-Φ26 | 135 | 290 | 63 | 200 | 300 | |
150 | 140 | 300 | 250 | 218 | 3 | 28 | 8-Φ26 | 180 | 310 | 63 | 200 | 300 | |
200 | 152 | 360 | 310 | 278 | 3 | 30 | 8-Φ26 | 4-M24 | 185 | 370 | 80 | 230 | 350 |
250 | 165 | 425 | 370 | 335 | 3 | 32 | 8-Φ30 | 4-M27 | 215 | 397 | 80 | 230 | 350 |
300 | 178 | 485 | 430 | 395 | 4 | 34 | 12-Φ30 | 4-M27 | 250 | 455 | 125 | 260 | 400 |
350 | 190 | 555 | 490 | 450 | 4 | 38 | 12-Φ33 | 4-M30 | 285 | 495 | 125 | 260 | 400 |
400 | 216 | 620 | 550 | 505 | 4 | 40 | 12-Φ36 | 4-M33 | 330 | 535 | 125 | 370 | 400 |
450 | 222 | 670 | 600 | 555 | 4 | 46 | 16-Φ36 | 4-M33 | 345 | 560 | 125 | 370 | 400 |
500 | 229 | 730 | 660 | 615 | 4 | 48 | 16-Φ36 | 4-M33 | 390 | 620 | 160 | 398 | 500 |
600 | 267 | 845 | 770 | 720 | 5 | 58 | 16-Φ39 | 4-M36 | 445 | 685 | 200 | 418 | 600 |
700 | 292 | 960 | 875 | 820 | 5 | 50 | 20-Φ42 | 4-M39 | 545 | 750 | 200 | 418 | 600 |
800 | 318 | 1085 | 990 | 930 | 5 | 54 | 20-Φ48 | 4-M45 | 625 | 870 | 263 | 510 | 700 |
900 | 330 | 1185 | 1090 | 1030 | 5 | 58 | 24-Φ48 | 4-M45 | 685 | 965 | 263 | 510 | 700 |
1000 | 410 | 1320 | 1210 | 1140 | 5 | 62 | 24-Φ56 | 4-M52 | 755 | 1040 | 263 | 510 | 700 |
1200 | 470 | 1530 | 1420 | 1350 | 5 | 70 | 28-Φ56 | 4-M52 | 860 | 1180 | 333 | 550 | 800 |
1400 | 530 | 1755 | 1640 | 1560 | 5 | 76 | 32-Φ62 | 4-M56 | 1020 | 1365 | 374 | 590 | 900 |
1600 | 600 | 1975 | 1860 | 1780 | 5 | 84 | 36-Φ62 | 4-M56 | 1190 | 1580 | 374 | 590 | 900 |
DN | L | 4.0MPa | |||||||||||
Flange Size | Dimension | ||||||||||||
D | D1 | D2 | f | b | z-Φd | Z-W | H0 | H | A | B | G | ||
50 | 108 | 165 | 125 | 102 | 3 | 20 | 4-Φ18 | 82.5 | 195 | 50 | 144 | 180 | |
65 | 112 | 185 | 145 | 122 | 3 | 22 | 8-Φ18 | 92.5 | 210 | 50 | 144 | 180 | |
80 | 114 | 200 | 160 | 138 | 3 | 24 | 8-Φ18 | 100 | 230 | 50 | 144 | 180 | |
100 | 127 | 235 | 190 | 162 | 3 | 24 | 8-Φ22 | 117.5 | 250 | 50 | 144 | 180 | |
125 | 140 | 270 | 220 | 188 | 3 | 26 | 8-Φ26 | 135 | 295 | 63 | 200 | 300 | |
150 | 140 | 300 | 250 | 218 | 3 | 28 | 8-Φ26 | 215 | 340 | 80 | 230 | 350 | |
200 | 152 | 375 | 320 | 285 | 3 | 34 | 12-Φ30 | 220 | 390 | 80 | 230 | 350 | |
250 | 165 | 450 | 385 | 345 | 3 | 38 | 8-Φ33 | 4-M30 | 265 | 485 | 125 | 260 | 400 |
300 | 178 | 515 | 450 | 310 | 4 | 42 | 12-Φ33 | 4-M30 | 290 | 490 | 125 | 260 | 400 |
350 | 190 | 580 | 510 | 465 | 4 | 46 | 12-Φ36 | 4-M33 | 310 | 540 | 125 | 370 | 400 |
400 | 216 | 660 | 585 | 535 | 4 | 50 | 12-Φ39 | 4-M36 | 340 | 620 | 160 | 398 | 500 |
450 | 222 | 685 | 610 | 560 | 4 | 57 | 16-Φ39 | 4-M36 | 390 | 645 | 200 | 418 | 600 |
500 | 229 | 755 | 670 | 615 | 4 | 57 | 16-Φ42 | 4-M39 | 415 | 670 | 200 | 418 | 600 |
600 | 267 | 890 | 795 | 735 | 5 | 72 | 16-Φ48 | 4-M45 | 500 | 740 | 200 | 418 | 600 |
700 | 292 | 995 | 900 | 840 | 5 | 64 | 20-Φ48 | 4-M45 | 580 | 900 | 263 | 510 | 700 |
800 | 318 | 1140 | 1030 | 960 | 5 | 72 | 20-Φ56 | 4-M52 | 665 | 975 | 333 | 550 | 800 |
900 | 330 | 1250 | 1140 | 1070 | 5 | 76 | 24-Φ56 | 4-M52 | 690 | 1010 | 333 | 550 | 800 |
1000 | 410 | 1360 | 1250 | 1180 | 5 | 80 | 24-Φ56 | 4-M52 | 755 | 1090 | 333 | 550 | 800 |
1200 | 470 | 1575 | 1460 | 1380 | 5 | 88 | 28-Φ62 | 4-M56 | 950 | 1365 | 374 | 590 | 900 |
1400 | 530 | 1795 | 1680 | 1600 | 5 | 98 | 32-Φ62 | 4-M56 | 1090 | 1475 | 453 | 635 | 1000 |
1600 | 600 |
