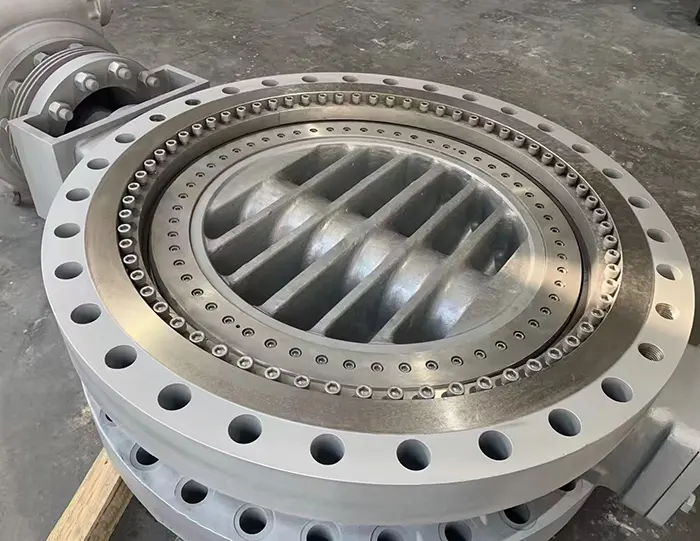

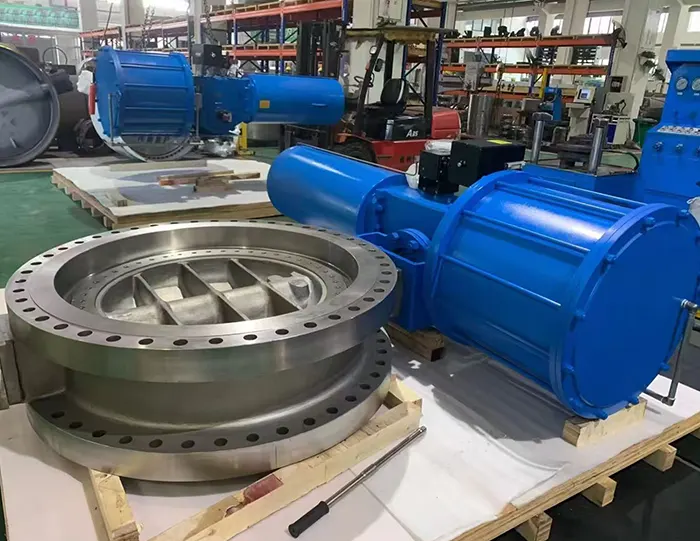

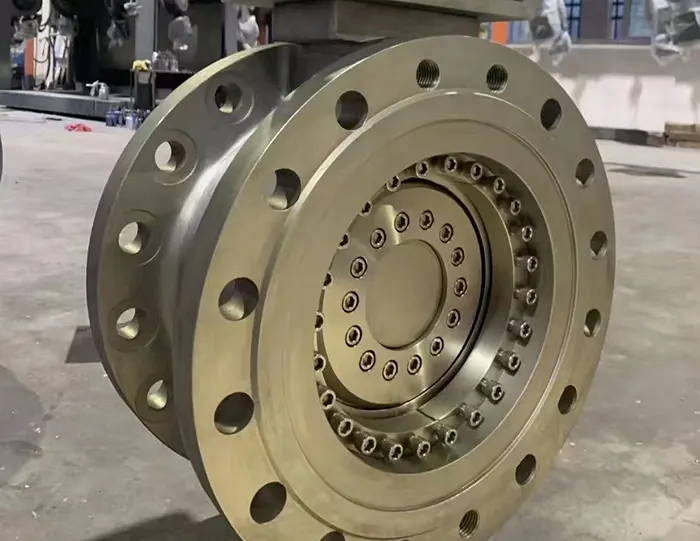

Rotary Butterfly Valve

Main Features:

1. Bi-directional flowing medium.

2. Double eccentric cam design.

3. Sealing pair: gradient functional materials such as martensitic stainless steel, austenitic stainless steel, cemented carbide, cermet, synthetic diamond and so on according to different hardness request.

4. Automatically alignment for range of working condition.

5. High quality sealing specific pressure, the high hard sealing pair can achieve zero leakage.

6. No friction between the sealing pairs: It has the characteristics of eccentric half ball valve, globe valve and wedge gate valve.

7. Small installation dimension & Small fluid resistance.

8. Its main structure is similar to butterfly valve, sealing type is similar to ball valve.

9. Range of Working temperature: 0℃~425℃.

10. Connecting type: Flange BW.

11. Range of application: Petroleum and petrochemical, metallurgy, chemical industry, electric power, gas, water conservancy, municipal administration, and construction industries, etc.

Technical Parameters:

High temperature Rotary Butterfly Valve Dimensions

High temperature Rotary Butterfly Valve Dimensions
DN	L	H1	E			ح
DN	L	H1	Worm gear	Pneumatic	Electric	Worm gear	Pneumatic	Electric
100	127	150	200	355	255	420	675	600
125	140	170	200	355	255	460	715	640
150	140	210	280	355	315	550	800	705
200	152	245	425	250	315	760	850	775
250	165	276	425	250	315	830	925	945
300	178	280	560	450	315	895	1035	1070
350	190	325	560	450	315	950	1070	1140
400	216	345	580	450	315	1190	1190	1210
450	222	390	580	650	714	1255	1250	1335
500	229	442	580	650	714	1305	1290	1415
600	267	505	660	850	810	1340	1455	1605
700	292	550	550	850	810	1520	1585	1844
800	318	605	550	1250	810	1710	1700	2040
900	330	665	550	1250	863	1810	1965	2255
1000	410	710	750	1250	863	1960	2015	2380
1200	470	835	925	12S0	863	2250	250	2640
1400	530	935	925	1250	1055	2434	2550	2866
1600	600	1060	925	1250	1055	2780	2750	3156
1800	670	1175	980	1250	1183	3020	2950	3421
2000	760	1265	980	1500	1286	3270	3350	3685

Welded Rotary Butterfly Valve Dimensions

Welded Rotary Butterfly Valve Dimensions
Dimensions		L	H1	ح
DN	NPS	PN6/PN10/PN16/PN25/PN40 CLass 150/CLass 300		Worm gear	Pneumatic	Electric
DN	NPS	PN6/PN10/PN16/PN25/PN40 CLass 150/CLass 300		Worm gear	Pneumatic	Electric
100	4	190	120	376	630	555
125	5	200	130	386	640	565
150	6	210	140	452	696	602
200	8	230	180	530	740	650
250	10	250	230	620	790	740
300	12	270	240	698	838	850
350	14	290	270	778	900	970
400	16	310	300	846	930	1010
450	18	330	340	1005	998	1082
500	20	350	360	1058	1045	1175
600	24	390	410	1195	1235	1410
700	28	430	510	1308	1390	1650
800	32	470	560	1505	1500	1830
900	36	510	620	1650	1810	2240
1000	40	550	670	1718	1860	2320
1200	48	630	780	2015	-	2406
1400	56	710	880	2265	-	2660
1600	64	790	1020	2547	-	2895

DQ342H-2.5/6/10/16 Flanged Telescopic Rotary Butterfly Valve Dimensions

DQ342H-2.5/6/10/16 Flanged Telescopic Rotary Butterfly Valve Dimensions
DN	L	Expansion △L	HI	H2	H3	A1	A2	Φ	0.25MPa		0.6MPa		1.0MPa		1.6MPa
DN	L	Expansion △L	HI	H2	H3	A1	A2	Φ	D1	n-d	D1	n-d	D1	n-d	D1	n-d
50	150	±10	82.5	150	66	135	42	150	110	4-Φ14	110	4-Φ14	125	4-Φ19	125	4-Φ19
65	170	±10	92.5	165	66	135	42	150	130	4-Φ14	130	4-Φ14	145	4-Φ19	145	4-Φ19
80	180	±10	100	170	66	135	42	150	150	4-Φ19	150	4-Φ19	160	8-Φ19	160	8-Φ19
100	190	±10	125	195	11	135	42	180	170	4-Φ19	170	4-Φ19	180	8-Φ19	180	8-Φ19
125	200	±10	142	220	77	135	42	180	200	8-Φ19	200	8-Φ19	210	8-Φ19	210	8-Φ19
150	210	±10	160	250	77	135	42	320	225	8-Φ19	225	8-Φ19	240	8-Φ23	240	8-Φ23
200	230	±12	190	275	107	202	60	320	280	8-Φ19	280	8-Φ19	295	8-Φ23	295	12-Φ23
250	250	±12	220	305	107	202	60	320	335	12-Φ19	335	12-Φ19	350	12-Φ23	355	12-Φ28
300	270	±15	245	350	126	220	93	320	395	12-Φ23	395	12-Φ23	400	12-Φ23	410	12-Φ28
350	290	±15	278	385	126	220	93	320	445	12-Φ23	445	12-Φ23	460	16-Φ23	470	16-Φ28
400	310	±15	305	435	157	287	123	400	495	16-Φ23	495	16-Φ23	515	16-Φ28	525	16-Φ31
450	330	±15	346	490	157	287	123	400	550	16-Φ23	550	15-Φ23	565	20-Φ28	585	20-Φ31
500	350	±20	375	505	165	360	184	390	600	20-Φ23	600	20-Φ23	620	20-Φ28	650	20-Φ34
600	390	±20	425	605	165	360	184	390	705	20-Φ26	705	20-Φ26	725	20-Φ31	770	20-Φ37
700	430	±20	495	675	195	410	204	500	810	24-Φ26	810	2-Φ26	840	24-Φ31	840	24-Φ37
800	470	±30	560	740	195	410	204	500	920	24-Φ31	920	24-Φ31	950	24-Φ34	950	24-Φ40
900	510	±30	625	805	235	521	217	500	1020	24-Φ31	1020	24-Φ31	1050	28-Φ34	1050	28-Φ40
1000	550	±30	680	865	235	521	217	500	1120	28-Φ31	1120	28-Φ31	1160	28-Φ37	1170	28-Φ43
1200	630	±35	800	1065	251	501	290	630	1320	32-Φ31	1340	32-Φ34	1380	32-Φ40	1390	32-Φ49
1400	710	±35	920	1207	343	656	312	800	1520	36-Φ31	1560	36-Φ37	1590	36-Φ43	1590	36-Φ49
1600	790	±40	1030	1317	370	750	414	800	1730	40-Φ31	1760	40-Φ37	1820	40-Φ49	1820	40-Φ56
1800	870	±40	1245	1457	470	800	440	900	1930	44-Φ31	1970	44-Φ40	2020	44-Φ48	2020	44-Φ56
2000	950	±50	1290	1625	470	800	440	900	2130	48-Φ30	2180	48-Φ43	2230	48-Φ48	2230	48-Φ62
2200	1000	±50	1450	1740	470	800	440	900	2340	52-Φ33	2390	52-Φ43	2440	52-Φ56	2440	52-Φ62
2400	1100	±50	1675	1875	480	990	595	1000	2540	56-Φ33	2600	56-Φ43	2650	56-Φ56	2650	56-Φ62
2600	1200	±50	1745	2010	480	990	595	1000	2740	60-Φ33	2810	60-Φ48	2850	60-Φ55	2850	60-d62
2800	1300	±50	1818	2100	480	990	595	1000	2950	64-Φ36	3020	64-Φ48	3070	64-Φ56	3070	64-Φ70
3000	1400	±50	1910	2200	480	990	595	1000	3160	68-Φ36	3220	68-Φ48	3290	68-Φ62	3300	68-Φ70
