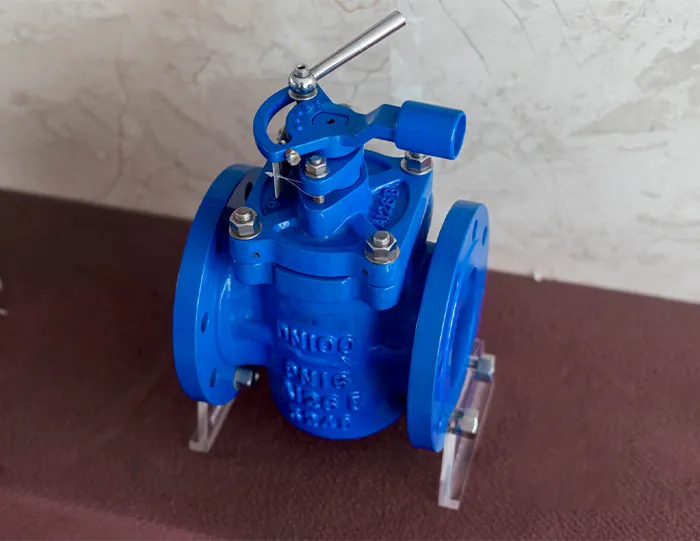

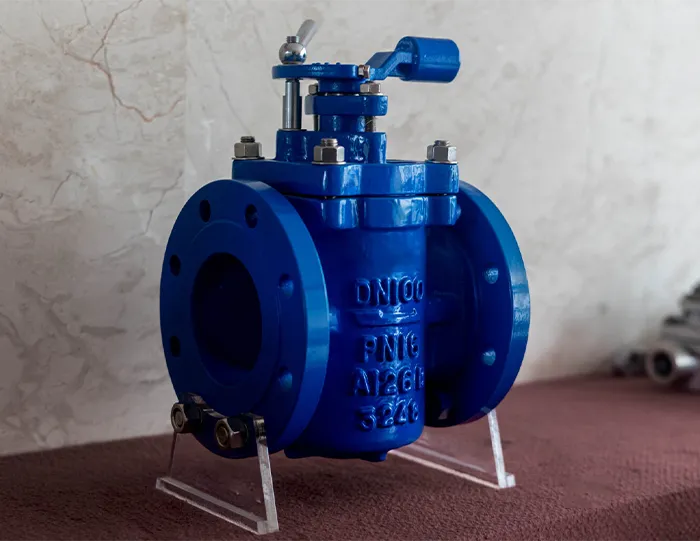

Elastic seat sealed plug valve provides reliable applications and offers availability and long service life for various medium, high-speed, corrosive fluid and fluid with impurity.
Features:
1. Elastic seat sealed structure: the sealing structure of elastic cock and corrosion-resistant seat performs the reliable sealing and zero leakage of the valve. It overcomes the shortage of easily being leaked occurred in the metal seal of traditional plug valve..
2. Elastic eccentric sealing design: The operating force is acted on the very short stroke of touching area or disengage from the sealing face of the valve. Besides, it quickly reduces when the sealing pressure reduces, there is no wearing on the sealing face and automatic compensation is offered by bottom spring. It solves the problems that traditional plug valve and ball valve occur serious wearing on the sealing face under large continuous operating force because the full travel of sealing face is forcibly squeezed.
Technical Parameters:
ECC-X43X-150LB
Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
L-RF | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | |
L-BW | 152 | 178 | 208 | 216 | 229 | 267 | 305 | 330 | 356 | 381 | 394 | 457 | 533 | 610 | 686 | |
ح | 59 | 63 | 75 | 95 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 398 | 495 | 580 | 625 | |
W | 400 | 400 | 500 | 500 | 600 | 600 | 820 | 820 | 300 | 300 | 320 | 320 | 350 | 380 | 380 |
ECC-X43X-300LB
Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
L-RF | 140 | 152 | 165 | 178 | 190 | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | |
L-BW | 152 | 178 | 203 | 216 | 229 | 267 | 305 | 330 | 356 | 381 | 457 | 521 | 559 | 635 | 762 | |
ح | 59 | 63 | 75 | 95 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 398 | 495 | 580 | 625 | |
W | 400 | 400 | 500 | 600 | 600 | 820 | 1000 | 1000 | 300 | 300 | 320 | 320 | 350 | 380 | 380 |
