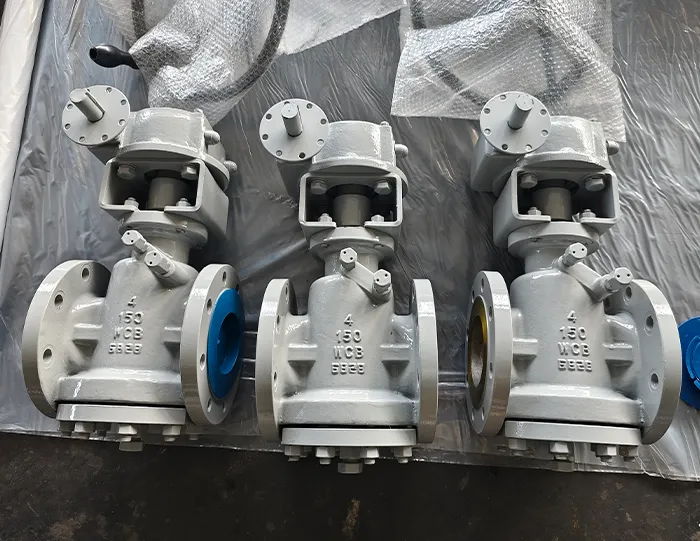

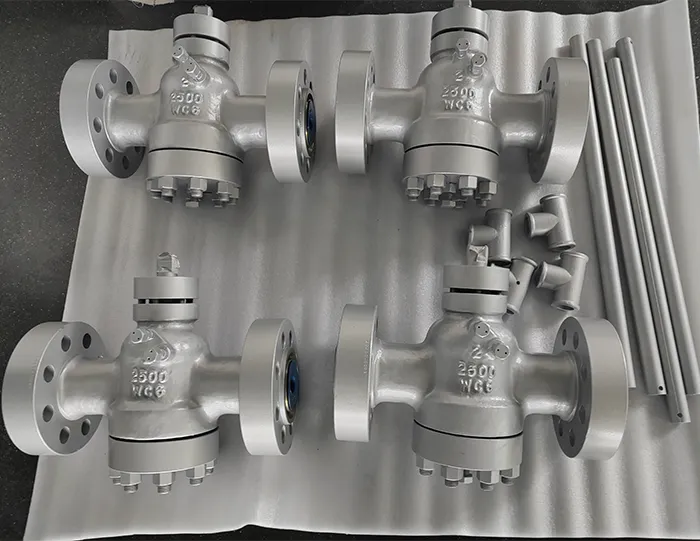

API Pressure Balance Plug Valve

Size rangeNPS1/2"~40"
PressureClass150~2500
Body materialA105, WCB, LCB, WCC, CF8, CF8M, CF3, CF3M, A890 4A, etc.
Operationlever, gear box, electric, pneumatic, hydraulic, etc.

معيار: ANSI, API, الدين, EAC, JIS, CE, ISO, AR, GB
More than 40 years professional valve manufacturer.
Products are exported to more than 72 countries.
Products are widely used in petroleum, chemical industry, metallurgy, electric power, water supply, coal gas, natural gas and other industries.
High reliability, excellent quality, fast service, online support

Features:

According to ANSI, API Pressure Balance Plug Valve is applicable to the cutting and connection of pipelines medium and is used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc. Its system pressure ranges from Class150 to Class900 and working temperature ranges from -29°C to 180°C

Technical Parameters:

API INVERTED PRESSURE BALANCE LUBRICATED PLUG VALVE structure

X47W/X347W-150LB

Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	11/4	11/2	2	21/2	3	4	5	6	8	10	12	14
L		108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
ح		180	180	185	200	214	215	250	270	300	340	365	400	450	510	590
W		400	400	500	500	600	600	820	820	300	300	320	320	350	380	380

X47W/X347W-300LB

Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	11/4	11/2	2	21/2	3	4	5	6	8	10	12	14
L		140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
ح		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	600	600	820	1000	1000	300	300	320	320	350	380	380

X47W/X347W-600LB

Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	11/4	11/2	2	21/2	3	4	5	6	8	10	12	14
L		165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
ح		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	500	600	600	820	820	300	300	320	320	350	380	380

X47W/X347W-900LB

Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	11/4	11/2	2	21/2	3	4	5	6	8	10	12	14
L		216	229	254	279	305	368	419	381	457	559	610	737	838	965	1029
ح		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	600	600	820	1000	1000	300	300	320	320	350	380	380
